原型模式详解
- Authors
- Name
- 青雲

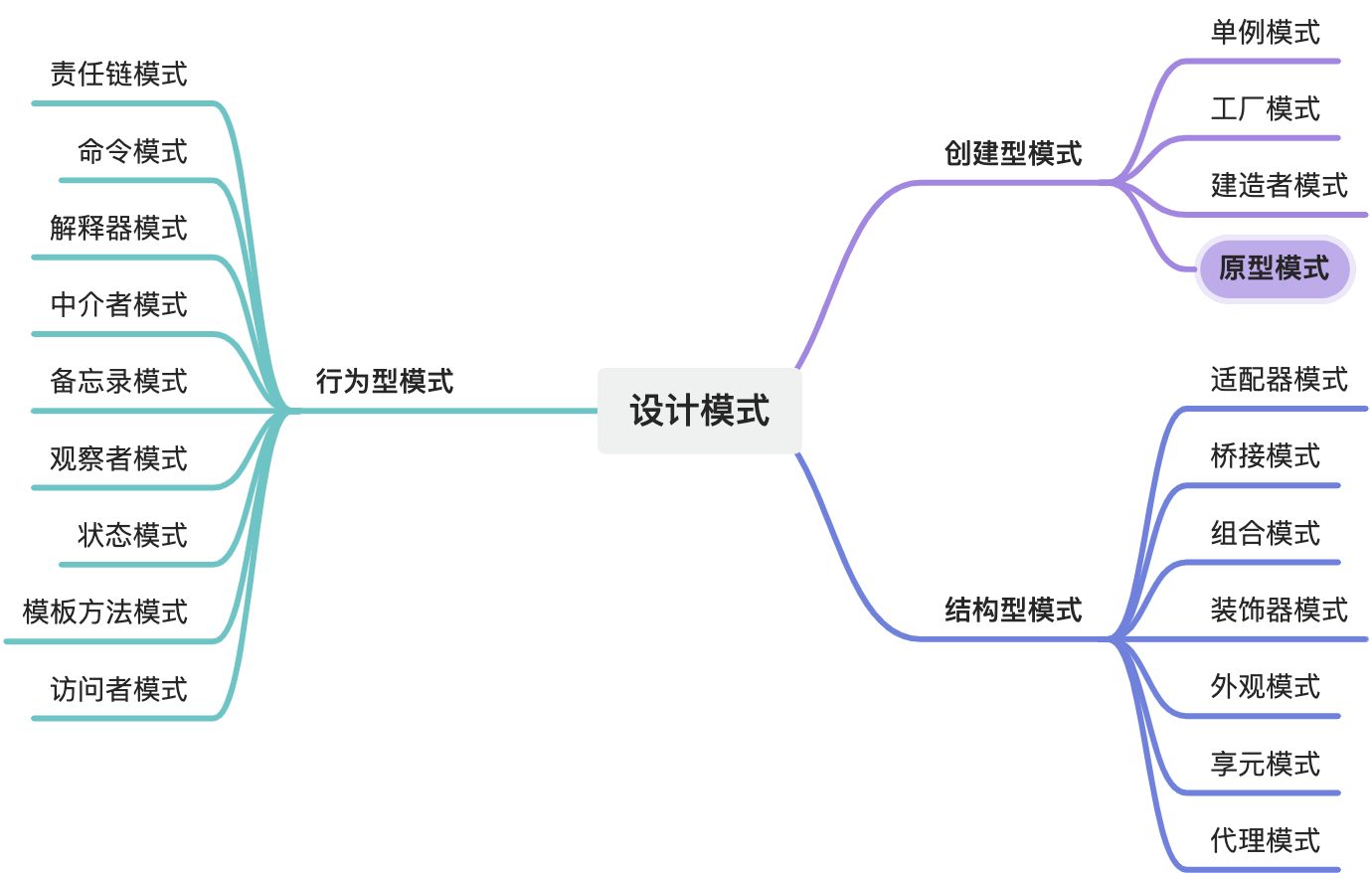

在软件设计中,原型模式(Prototype Pattern)是一种创建型设计模式。它的主要思想是通过复制已有的实例来创建新对象,而不是通过类构造器来创建。这种模式特别适用于对象的创建代价较高,或者需要多个几乎相同的对象时。通过原型模式,我们可以高效地创建对象,并且更灵活地管理对象的状态。
为什么需要原型模式?
在某些情况下,创建对象是一个昂贵的操作,可能涉及复杂的计算、网络请求或数据库查询。通过原型模式,我们可以通过复制现有对象,快速创建新对象,避免重复复杂的创建过程。 另外,原型模式还有助于简化对象创建的代码结构,使得代码更加灵活和易于维护。

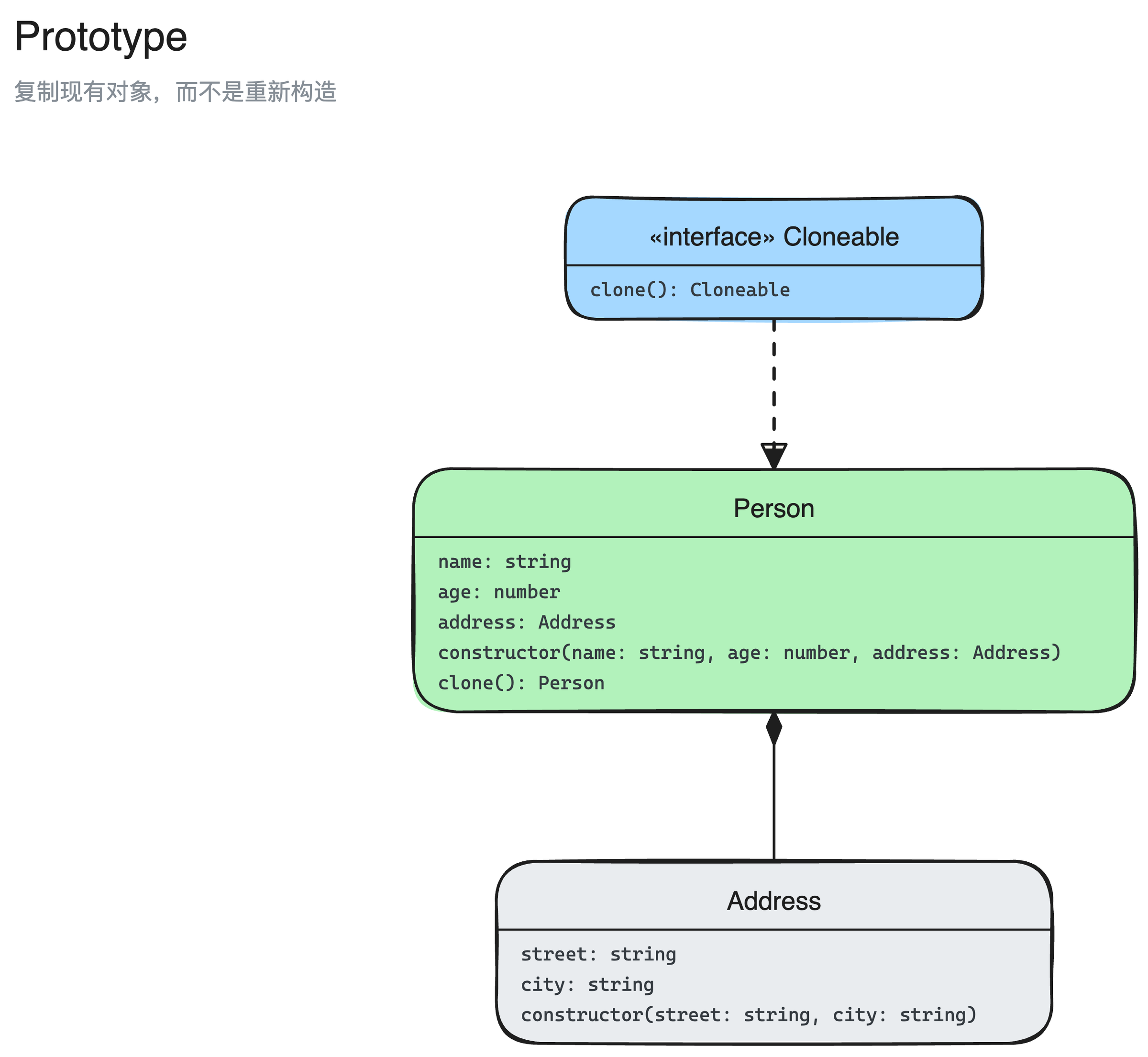

基本结构
原型模式通常由以下几个部分组成:
- 原型接口(Prototype Interface):声明克隆方法。
- 具体原型类(Concrete Prototype):实现克隆方法,负责复制自身。
- 客户端(Client):调用克隆方法来创建新对象。
示例
定义原型接口
首先,我们定义一个 Cloneable
接口,包含一个 clone
方法。
interface Cloneable {
clone(): this
}
实现具体原型类
具体原型类实现 Cloneable
接口,并实现 clone
方法。
class Person implements Cloneable {
constructor(
public name: string,
public age: number,
public address: Address
) {}
clone(): this {
const cloneObj = Object.create(this)
cloneObj.address = Object.assign({}, this.address)
return cloneObj
}
}
class Address {
constructor(
public street: string,
public city: string
) {}
}
使用原型模式创建对象
我们通过克隆方法来创建新对象,并展示原型模式的效果。
const originalPerson = new Person('Han Mei', 30, new Address('Yuehai St', 'Shenzhen'))
const clonedPerson = originalPerson.clone()
clonedPerson.name = 'Li Lei'
clonedPerson.address.street = 'Nanshan St'
console.log(`Original Person: ${originalPerson.name}, ${originalPerson.address.street}`)
// 输出: Original Person: Han Mei, Yuehai St
console.log(`Cloned Person: ${clonedPerson.name}, ${clonedPerson.address.street}`)
// 输出: Cloned Person: Li Lei, Nanshan St
深拷贝示例
在前面的示例中,我们进行了浅拷贝,但对于更复杂的对象,还可能需要进行深拷贝。 实现深拷贝,可以采用递归的方法,或者使用 JSON.parse
和 JSON.stringify
来实现。 我们将定义一个递归函数来实现深拷贝,这个函数能够处理嵌套对象和数组。
function deepClone<T>(obj: T): T {
// 处理 null 或者基础类型(比如:string, number, boolean)
if (obj === null || typeof obj !== 'object') {
return obj
}
// 处理 Array
if (Array.isArray(obj)) {
const arrCopy = [] as any[]
obj.forEach((item, index) => {
arrCopy[index] = deepClone(item)
})
return arrCopy as unknown as T
}
// 处理 Object
const objCopy = {} as T
Object.keys(obj).forEach((key: keyof T) => {
objCopy[key] = deepClone(obj[key])
})
return objCopy
}
然后将使用上述递归实现的深拷贝方法在前面的 Person 类中。
class Address {
constructor(
public street: string,
public city: string
) {}
}
class Person implements Cloneable {
constructor(
public name: string,
public age: number,
public address: Address
) {}
clone(): this {
return deepClone(this)
}
}
interface Cloneable {
clone(): this
}
应用场景
对象创建
假设我们需要创建一个网页组件 Button,它有多个配置选项。我们可以使用原型模式来创建不同配置的按钮对象。
interface Cloneable {
clone(): this
}
class Button implements Cloneable {
constructor(
public label: string,
public width: number,
public height: number,
public color: string
) {}
clone(): this {
const cloneObj = Object.create(this)
return cloneObj
}
render(): void {
console.log(
`Button: ${this.label}, Width: ${this.width}, Height: ${this.height}, Color: ${this.color}`
)
}
}
// 创建一个按钮原型
const defaultButton = new Button('Submit', 100, 50, 'blue')
defaultButton.render() // 输出: Button: Submit, Width: 100, Height: 50, Color: blue
// 使用原型模式创建新按钮
const customButton = defaultButton.clone()
customButton.label = 'Cancel'
customButton.color = 'red'
customButton.render() // 输出: Button: Cancel, Width: 100, Height: 50, Color: red
配置对象
在前端开发中,我们常常需要使用配置对象来初始化组件。通过原型模式,可以基于默认配置对象创建新的配置对象,方便快速定制不同的配置。
interface Config extends Cloneable {
theme: string
layout: string
showSidebar: boolean
}
class AppConfig implements Config {
constructor(
public theme: string,
public layout: string,
public showSidebar: boolean
) {}
clone(): this {
const cloneObj = Object.create(this)
return cloneObj
}
display(): void {
console.log(`Theme: ${this.theme}, Layout: ${this.layout}, Show Sidebar: ${this.showSidebar}`)
}
}
// 创建默认配置
const defaultConfig = new AppConfig('light', 'grid', true)
defaultConfig.display() // 输出: Theme: light, Layout: grid, Show Sidebar: true
// 基于默认配置创建新的配置
const customConfig = defaultConfig.clone()
customConfig.theme = 'dark'
customConfig.display() // 输出: Theme: dark, Layout: grid, Show Sidebar: true
状态管理
在前端应用中,常常需要复制状态对象,方便创建新状态或回滚到之前的状态。
interface State extends Cloneable {
user: string
isLoggedIn: boolean
preferences: object
}
class AppState implements State {
constructor(
public user: string,
public isLoggedIn: boolean,
public preferences: object
) {}
clone(): this {
const cloneObj = Object.create(this)
cloneObj.preferences = { ...this.preferences }
return cloneObj
}
display(): void {
console.log(
`User: ${this.user}, Is Logged In: ${this.isLoggedIn}, Preferences: ${JSON.stringify(this.preferences)}`
)
}
}
// 创建初始状态
const initialState = new AppState('Alice', true, { theme: 'light', language: 'en' })
initialState.display() // 输出: User: Alice, Is Logged In: true, Preferences: {"theme":"light","language":"en"}
// 基于初始状态创建新状态
const newState = initialState.clone()
newState.user = 'Bob'
newState.preferences.theme = 'dark'
newState.display() // 输出: User: Bob, Is Logged In: true, Preferences: {"theme":"dark","language":"en"}
图形对象
在图形和动画处理中,原型模式可以用来复制图形对象,从而生成多个相似的图形实例,便于图形的管理和操作。
interface Graphic extends Cloneable {
draw(): void
}
class Circle implements Graphic {
constructor(
public radius: number,
public color: string
) {}
clone(): this {
const cloneObj = Object.create(this)
return cloneObj
}
draw(): void {
console.log(`Drawing a ${this.color} circle with radius ${this.radius}`)
}
}
// 创建一个图形原型
const defaultCircle = new Circle(10, 'blue')
defaultCircle.draw() // 输出: Drawing a blue circle with radius 10
// 使用原型模式创建新图形
const customCircle = defaultCircle.clone()
customCircle.radius = 20
customCircle.color = 'red'
customCircle.draw() // 输出: Drawing a red circle with radius 20
Lodash 对象拷贝
Lodash 是一个流行的工具库,广泛用于处理数组、对象、字符串等。Lodash 中的 _.clone()
和_.cloneDeep()
方法用于实现对象的浅拷贝和深拷贝。
const _ = require('lodash')
const obj = { a: 1, b: { c: 3 } }
const shallowCopy = _.clone(obj)
const deepCopy = _.cloneDeep(obj)
console.log(shallowCopy) // { a: 1, b: { c: 3 } }
console.log(deepCopy) // { a: 1, b: { c: 3 } }
// 修改原对象不会影响深拷贝的对象
obj.b.c = 4
console.log(obj) // { a: 1, b: { c: 4 } }
console.log(deepCopy) // { a: 1, b: { c: 3 } }
原型模式的优缺点
优点
- 快速创建对象:通过克隆现有对象,可以快速创建新对象,适用于创建代价高的对象。
- 简化对象创建过程:避免了直接使用构造函数来创建对象,代码更加简洁。
- 灵活性高:可以动态改变对象的状态,同时生成多个副本。
缺点
- 深拷贝复杂:对于包含引用类型的复杂对象,实现深拷贝较为复杂,需要小心处理对象之间的引用关系。
- 内存消耗:大量使用克隆方法可能会导致过多的内存消耗,需要合理管理对象生命周期。
总结
原型模式是一种强大的设计模式,通过复制现有对象来创建新对象,节省了对象创建的成本,使得代码更加灵活和易于维护。在前端开发中,尤其是在需要大量生成相似对象的场景中,原型模式提供了高效的解决方案。
